Electric Furnace

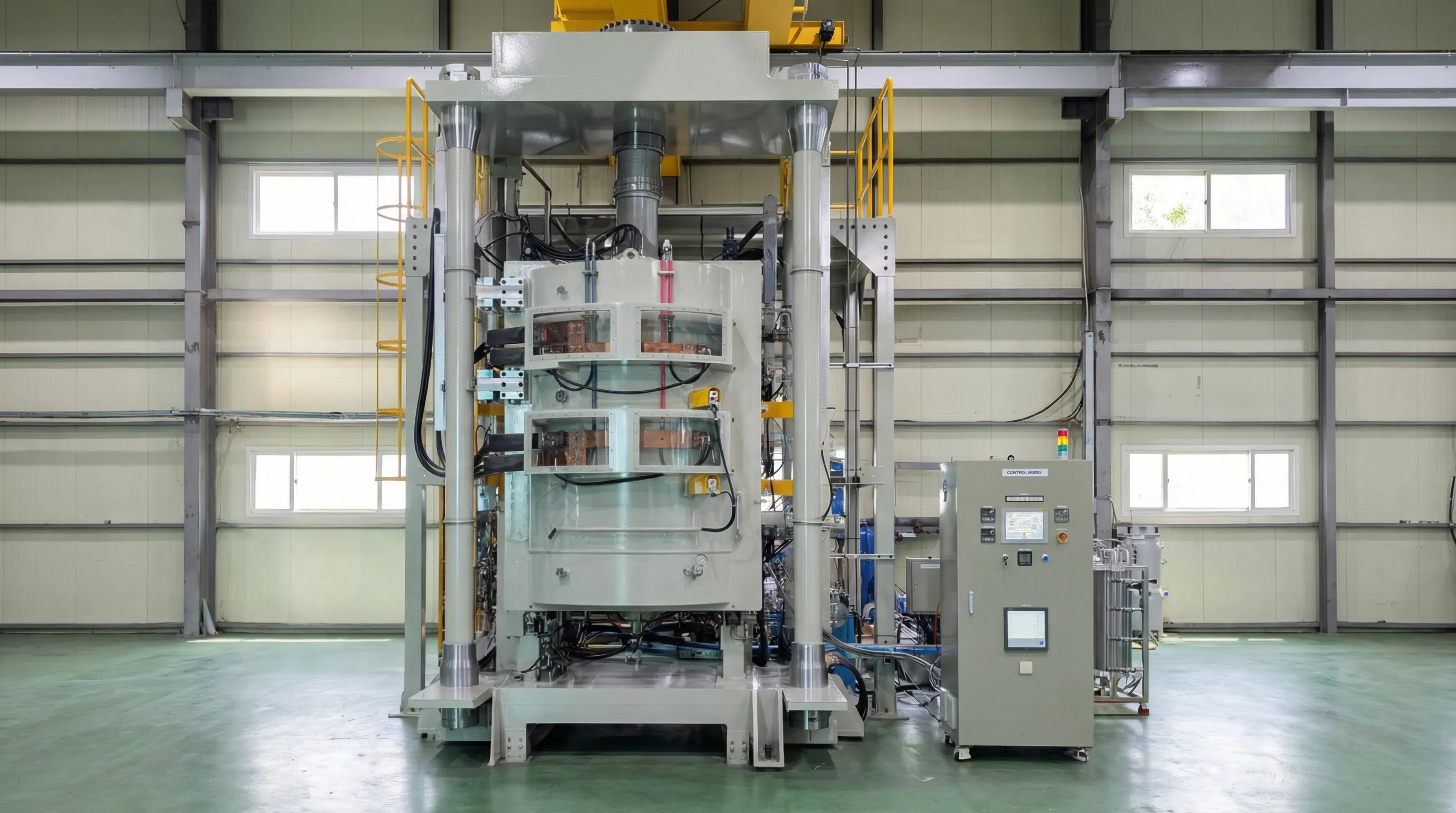

Vacuum Hot Press
SPEC.
| Model | KTVHP-100 / 200 / 300 |
| Chamber Material | Shell: STS304 Jacket & Flange: S275 |
| Effective Dimensions | Ø800 × H1000 (Vertical cylindrical type) |
| Pressing Force | 300 tons |
| Pressing Method | Lower fixed, upper pressing (bi-directional pressing available) |
| Operating Temperature | Rated: 2100 °C Maximum: 2300 °C |
| Vacuum Level | 5 × 10⁻³ Torr |
| Power Supply | 3 Phase, 380 V |
Vacuum Quenching Furnace
SPEC.
| Model | KT-VQF1200 |
| Chamber Material | STS304, Dual Jacket Type |
| Effective Heating Chamber | 500(W) × 450(H) × 1800(D) |
| Loading Capacity | < 500 kg / charge |
| Operating Temperature | Rated: 2200 °C Maximum: 2300 °C |
| Vacuum Level | 5 × 10⁻² Torr |
| Power Supply | 3 Phase, 380 V |
Vertical Type Furnace
SPEC.
| Model | KT-VF-Z6 |
| Chamber Material | STS304 |
| Internal Dimensions | Ø1600 × 3600(H) |
| Loading Capacity | Basket 300 kg / charge |
| Operating Temperature |
Rated: 650 ~ 900 °C Maximum: 1050 °C |
| Heater Configuration | #1 ~ #6 Zone |
| Power Supply | 3 Phase, 380 V |

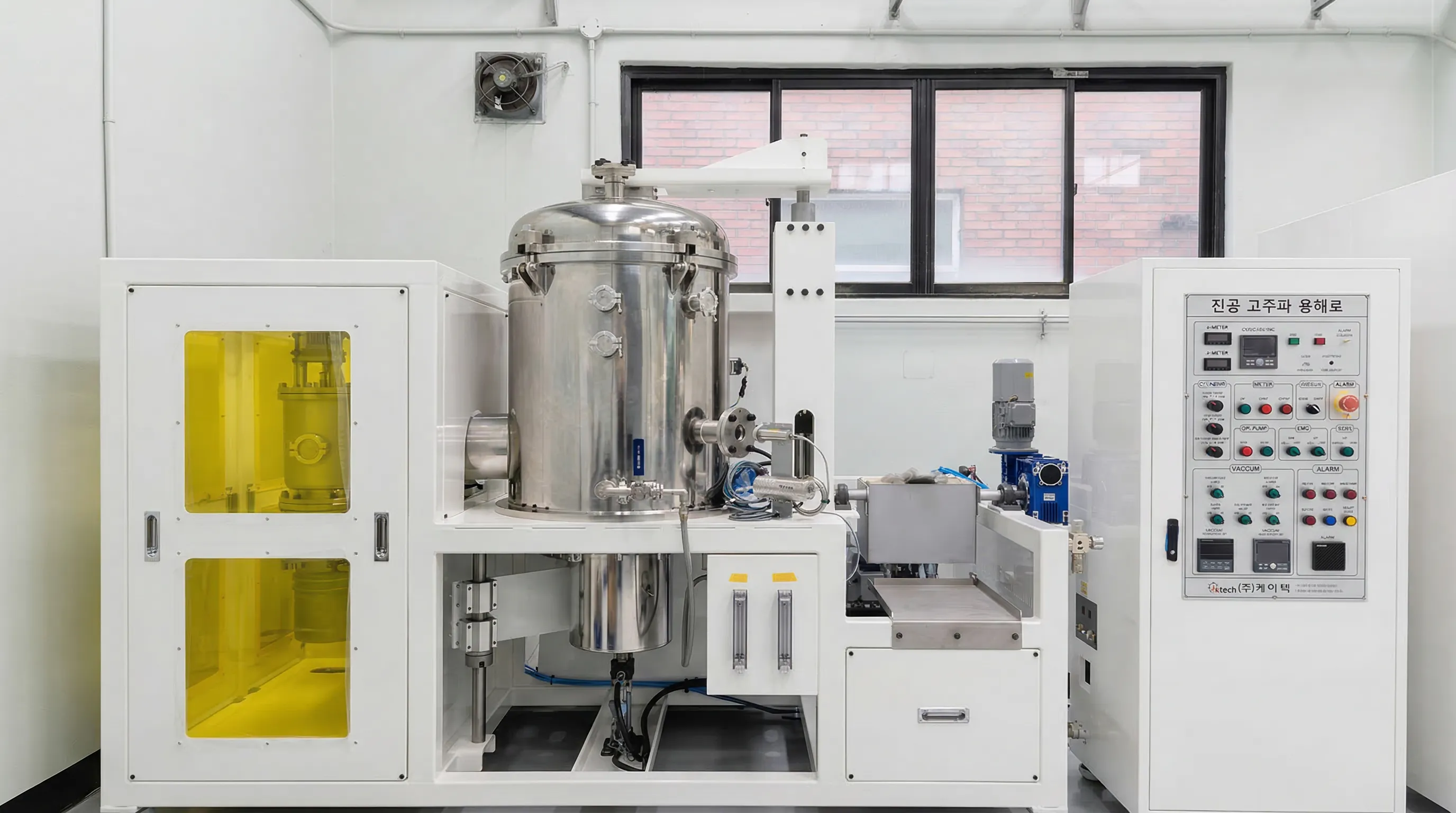

High Frequency type Melting Furnace
SPEC.
| Chamber | STS304, Double Jacket |
| Chamber Size | 1200(W) × 1200(D) × 1200(H) |
| Operating Temperature | 2500 °C |
| Power Supply | 3 Phase, 380 V |
