Strip Belt Type Dryer

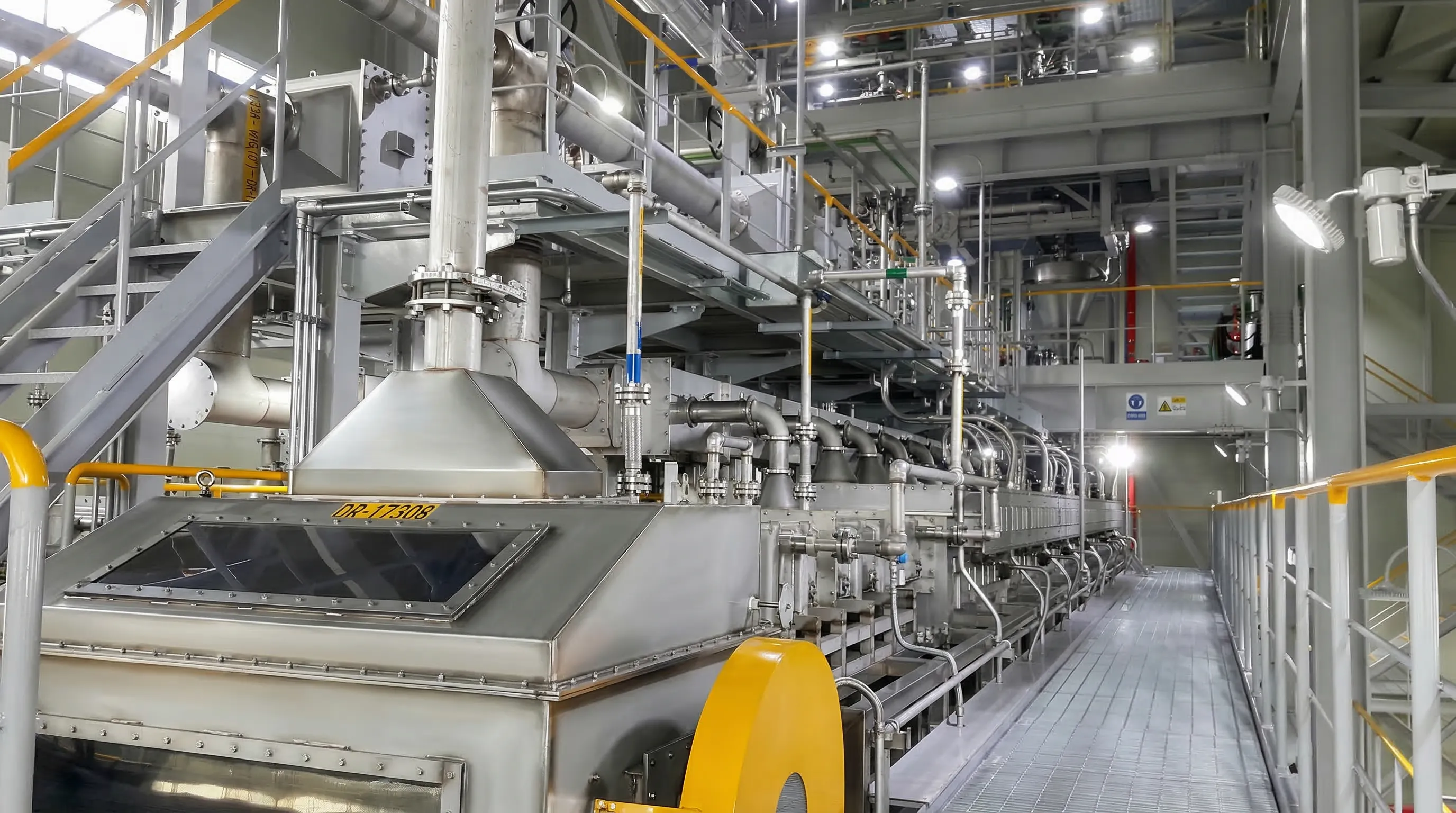

Equipment designed to dry high-moisture CNT pellets by transporting them on an SUS strip belt. The hot zone is divided into six main sections, with independent temperature and airflow control for each zone.
※ Client L: CNT Drying Furnace (A…SUS) for Carbon Nanotube conductive material production
SPEC.
| CATEGORY | DETAIL |
|---|---|
| Temperature | Max 300 ℃ |
| Heater | Cartidge heater |
| Dimension | 2,170W x 2,950H x 20,350L |
| Equipment Power | 3P, 440V |
