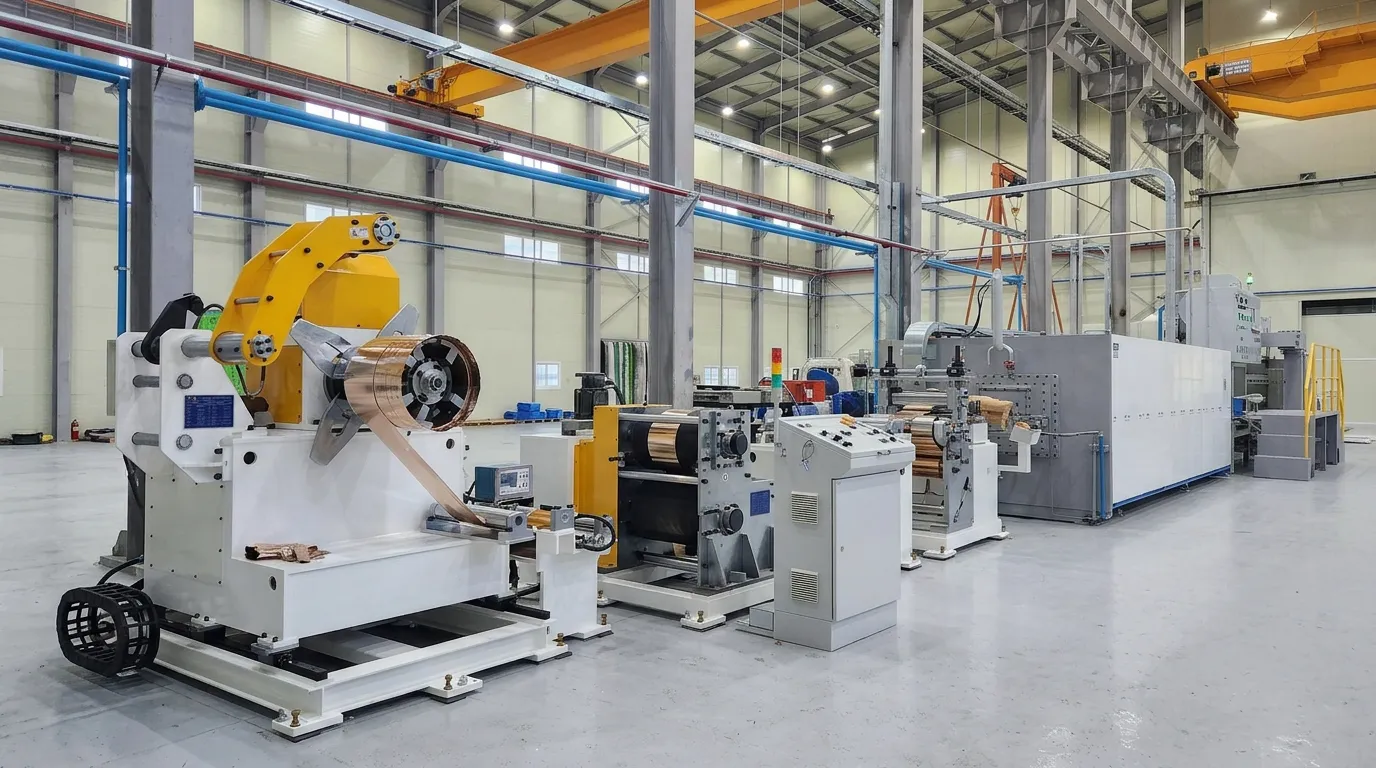

Roll to roll Bright Annealing Furnace
Roll to roll Bright Annealing Furnace
This system is used for annealing and tempering metal foils (20–40 μm) and features an SiC muffle with SiC heater elements.
SPEC.
| CATEGORY | DETAIL |
|---|---|
| Model | KT-MTF-25 |
| Atmoshpere | N2,H2 Mixed Gas, N2 Gas |
| Dimension | 28,000L x 3,300W x 3,200H |
| Production Speed | 6mpm, Max10mpm |
| Operating Temperature | 550~1,050℃, Max 1,100℃ |
| Heater | SiC Heater |
| Equipment Power | 3P, 380V |
