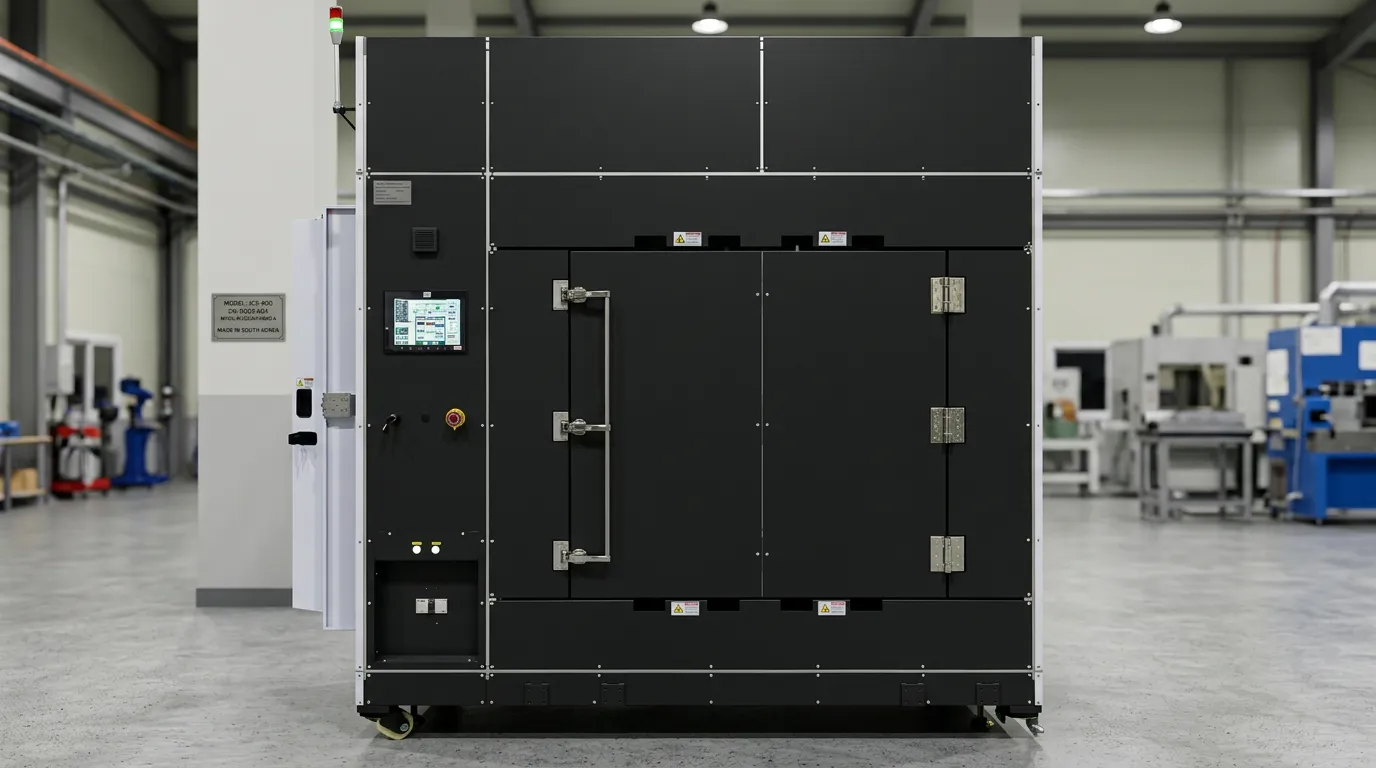

Debinding Furnace
Debinding Furnace
This equipment uses heated air to remove binders from molded parts and is suitable for achieving uniform debinding and stable product quality.
SPEC.
| CATEGORY | DETAIL |
|---|---|
| Model | KTDF-100 |
| Chamber Meterial | STS310S, STS304 |
| Effective Dimension | 1,000W x 1,000D x 1,000H |
| Chamber Weight | <500kg |
| Operating temperature | ~650℃, Max 700℃ |
| Heater | Cartridge Heater |
| Equipment Power | 3P, 380V, 90KW |
